11mm 13mm Prestressed Reinforcing Steel Bar For Concrete Rebar Reinforcement

Model Number : 7.4/9.2/11/13

Certification : KS D3505

Place of Origin : CHINA

Brand Name : LT

MOQ : 1 container/20tons

Packaging Details : PLASTIC FILM PACKING

PRODUCT NAME : PRESTRESSED CONCRETE STEEL BAR

BRAND : LT

SIZE : 7.4/9.2/11/13

APPLICATION : Prestressed Concrete Pile

MATERIAL : STEEL

CUSTOMIZED : ACCEPT

Contact Now

7.4/9.2/11/13MM PRESTRESSED CONCRETE STEEL BAR

Developed as the main reinforcement for PC piles and poles and featuring superb bonding characteristics with concrete, a narrow-diameter deformed PC steel bar provided with mechanical properties specified by JIS G 3137 realized through deformation drawing, induction quenching and tempering of raw material with outstanding chemical composition for spot welding.

1, Technical parameters of PC BAR

Size(mm)	Surface Shape Type	Nominal steel area (S/mm²)	Tensile Strength (Mpa)	Yield Stress (Mpa)	Relaxation rate (%)	Elongation (%)
7.1/7.4	Spiral Groove	39-41.7	≥1420	≥1280	≤2.0	≥7.0
9.0/9.2		62.4-66.5
10.7/11		87.5-93.6
12.6/13		121.5-129.9

2, Chemical composition (%) of PC BAR –Material 30MnSi

C	Si	Mn	P(Max)	S(Max)	Cu(Max)
0.28-0.33	0.60-0.90	0.90-1.30	0.03	0.035	0.3

3, Reference info

Production standard	KSD3505
Packing	Tied with at least 8 steel strips per coil, wrapped with waterproof film.
Coil weight	1-ton or 2-ton coil shapes are available for delivery.
Diameter of Coil	Inside Dia.:1.99m Outside Dia.:2.3m Height:18cm
Application	Pre-stressed concrete pile /Spun piles /Poles

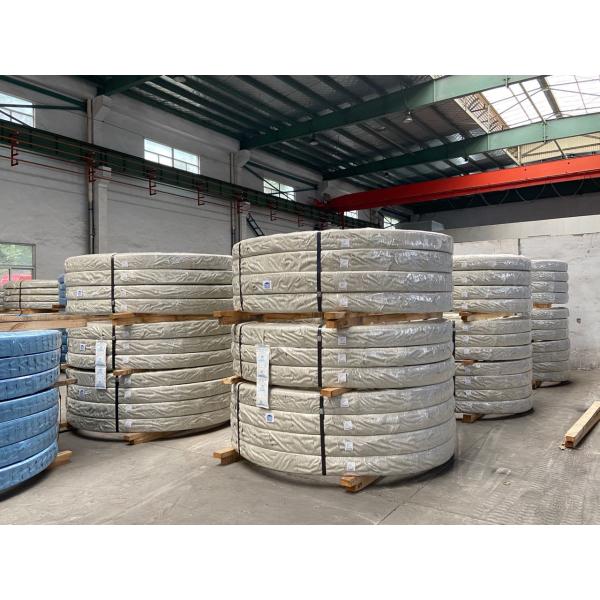

Product detail:

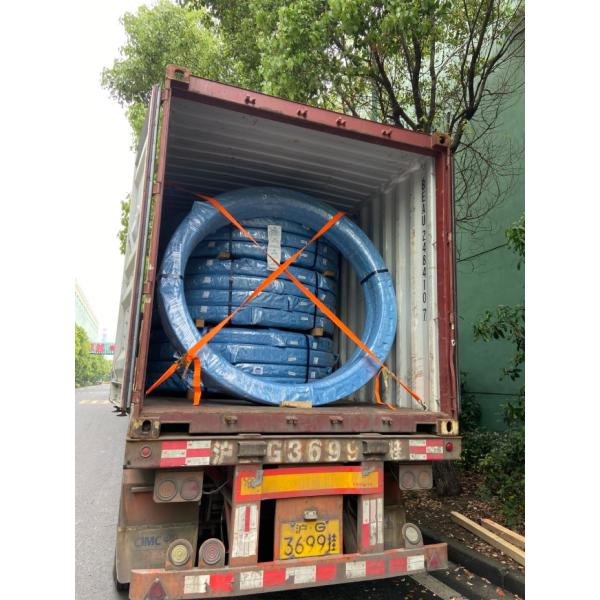

Package and Container loading:
